Technical Details
Here you can find out in detail which technical features make SOFTLINE 76 MD so powerful.
U-Values

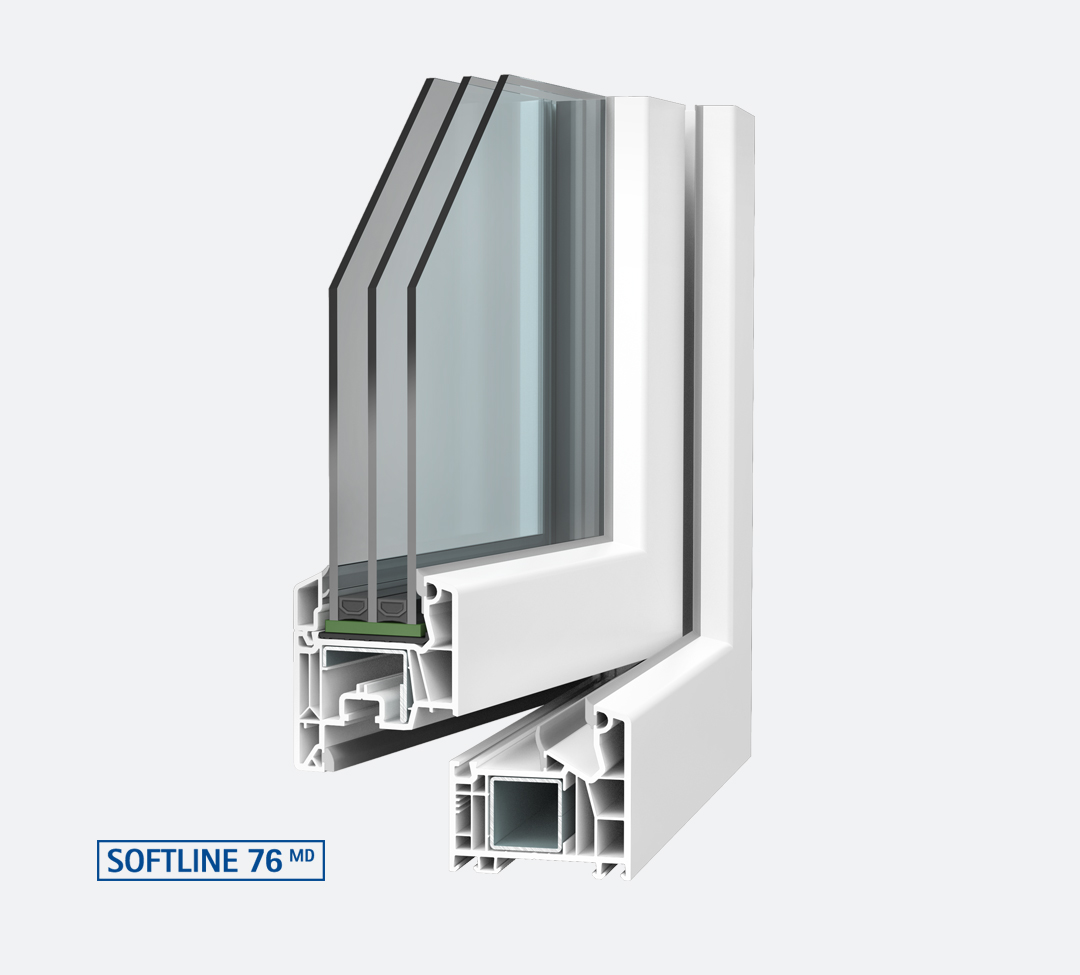

VEKA SOFTLINE 76 MD offers exceptional thermal insulation and achieves excellent U-values. These values are crucial to the energy efficiency of a window as they measure the heat transfer through the window profile. The system's advanced multi-chamber design and high-quality gaskets minimize heat loss, helping to reduce energy costs and improve indoor comfort.
Facts | SOFTLINE 76 MD |
|---|---|
Sash Size up to | 49” x 98” |
Glass thickness | 1.88” |
Gaskets | Triple |
Uf-value up to | 0.17 BTU/hr x ft² x F |
Aluminium cladding possible | Yes |
Sound Insulation
VEKA SOFTLINE 76 MD provides excellent sound insulation, ensuring a quiet and comfortable indoor environment. This makes it particularly suitable for urban areas or locations near busy roads where sound reduction is essential. The system’s high-quality gaskets, together with various glazing options, help to effectively reduce external sound.
Facts | Results |
|---|---|
Sound Transmission Class (STC) | 47 |
Outdoor-Indoor Transmission Class (OITC) | 38 |
*Test results with the following Glazing: 1-5/8” IG (1/2” laminated exterior, 13/16” argon, 5/16” laminated interior), Glass temperature 75°F | |
Complete Your System Selection
Contact
Questions About Our Systems?
For detailed information about our window and door systems or to discuss how VEKA can support your project, feel free to reach out directly.
